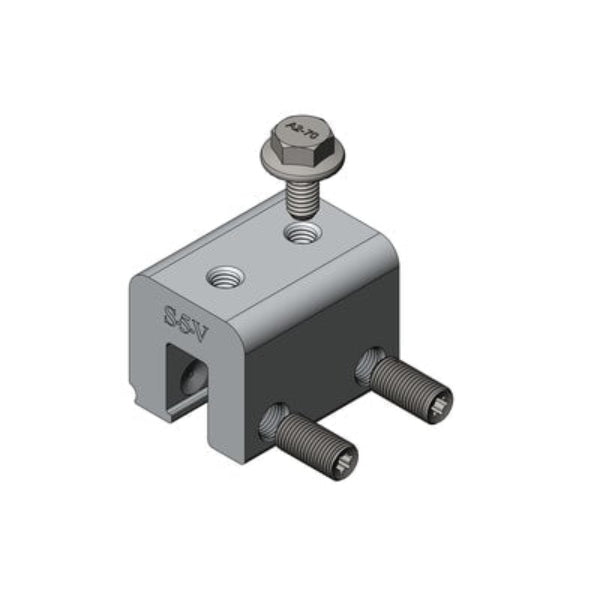

S-5-V Metal Roof Clamps

The S-5-V (“V” stands for vertical) is a cost-effective solution for most machine-folded seams in vertical orientation and within certain dimensions. It is non-penetrating and one of our most popular standing seam metal roof clamps.

There may be other S-5! options more appropriate or cost-effective for your specific application.

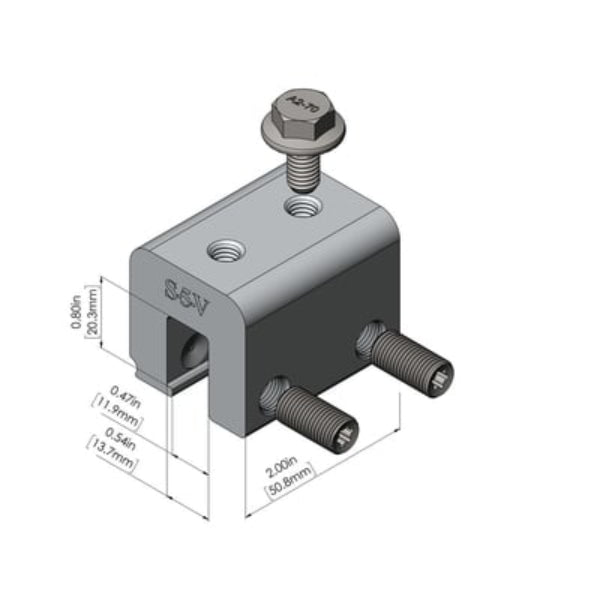

Specifications:

• Accommodates same vertically-oriented seams as
  the S-5-U
• Lower cost than the S-5-U
• Specifically designed for vertical, mechanically-folded seams
• Use for heavy-duty applications, such as snow retention
• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included

It is also available in the smaller S-5-V (Mini).

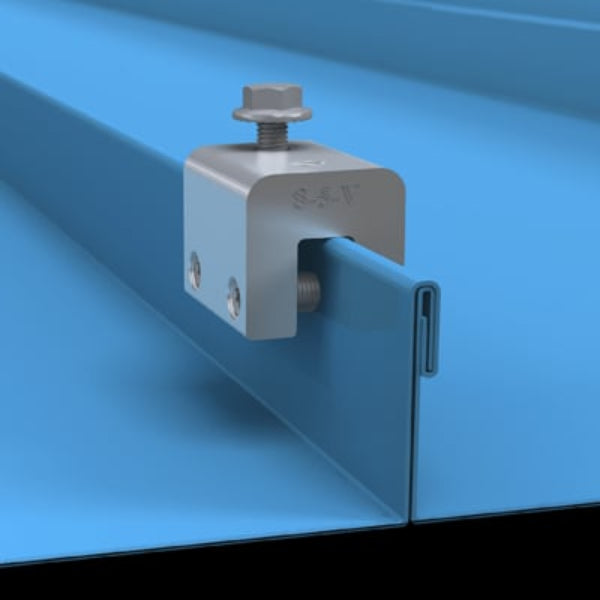

The S-5-V clamp, designed for vertical, machine-folded seams, offers optimal vertical grip, suitable for securing accessories to most vertical seams without piercing the metal.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.





S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
